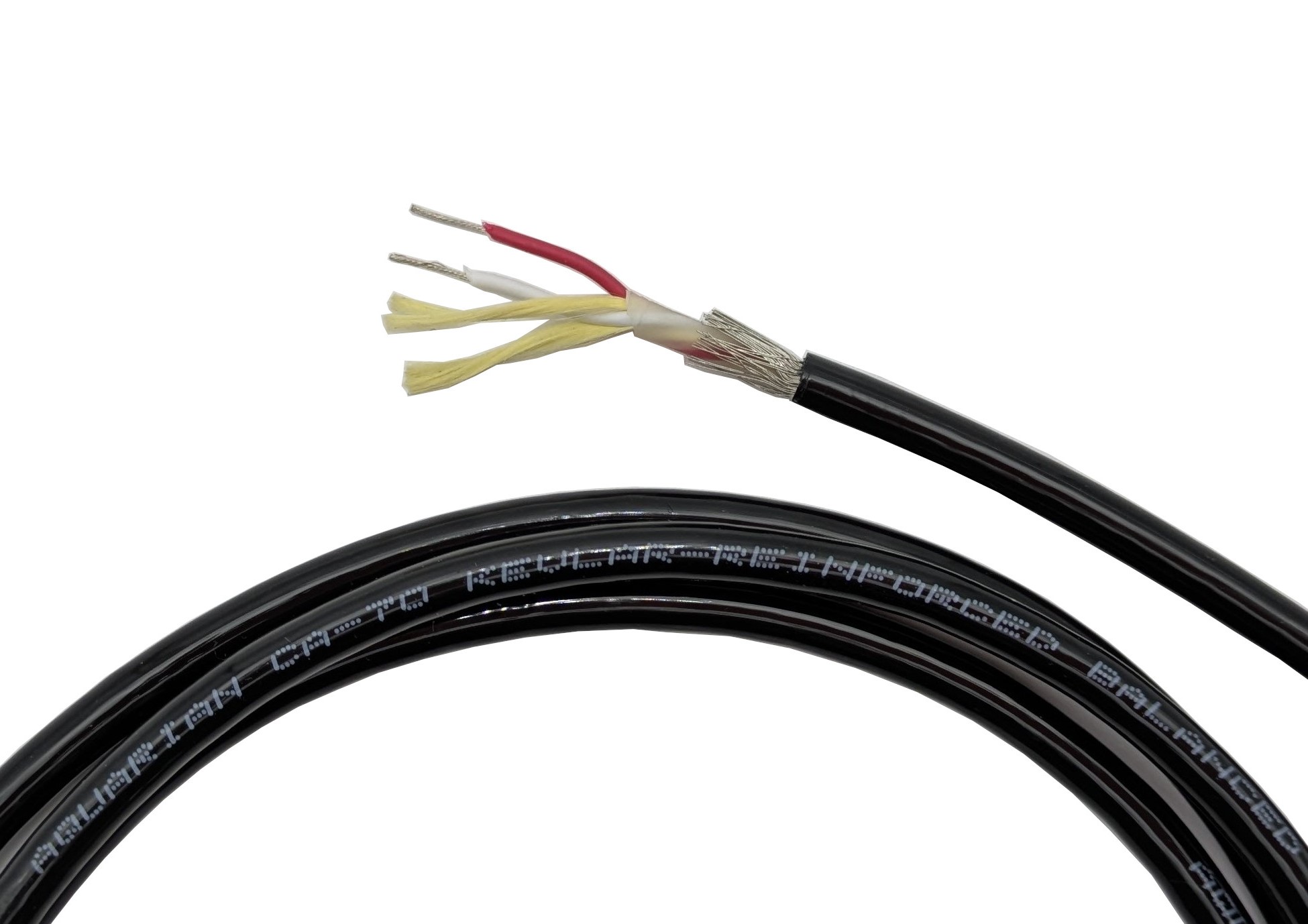

#26AWG, Kevlar reinforced, balanced cable with belting layer and spiral shield. All tinned copper conductors.
Highly cut and abrasion-resistant polyether urethane jacket is stable for long-term immersion and remains flexible at very cold temperatures. Belting layer ensures that the cable stays round under pressure and minimizes voids which can wick water. Spiral shield offers best flexibility and allows some longitudinal compliance to absorb acceleration noise from cable vibrations whle two Kevlar yarns in the belting layer provide tensile strength.
Currently offered as standard cable on S1e only.
Specifications:
- Nominal OD: 4.5mm
- Mass: 24 grams/meter
- Specific Gravity: 1.05
- Capacitance: 32pF/meter conductor-to-conductor; 31pF/m conductor-to-shield
- DC resistance: 0.13 ohm/meter per conductor.
