H1c Hydrophone

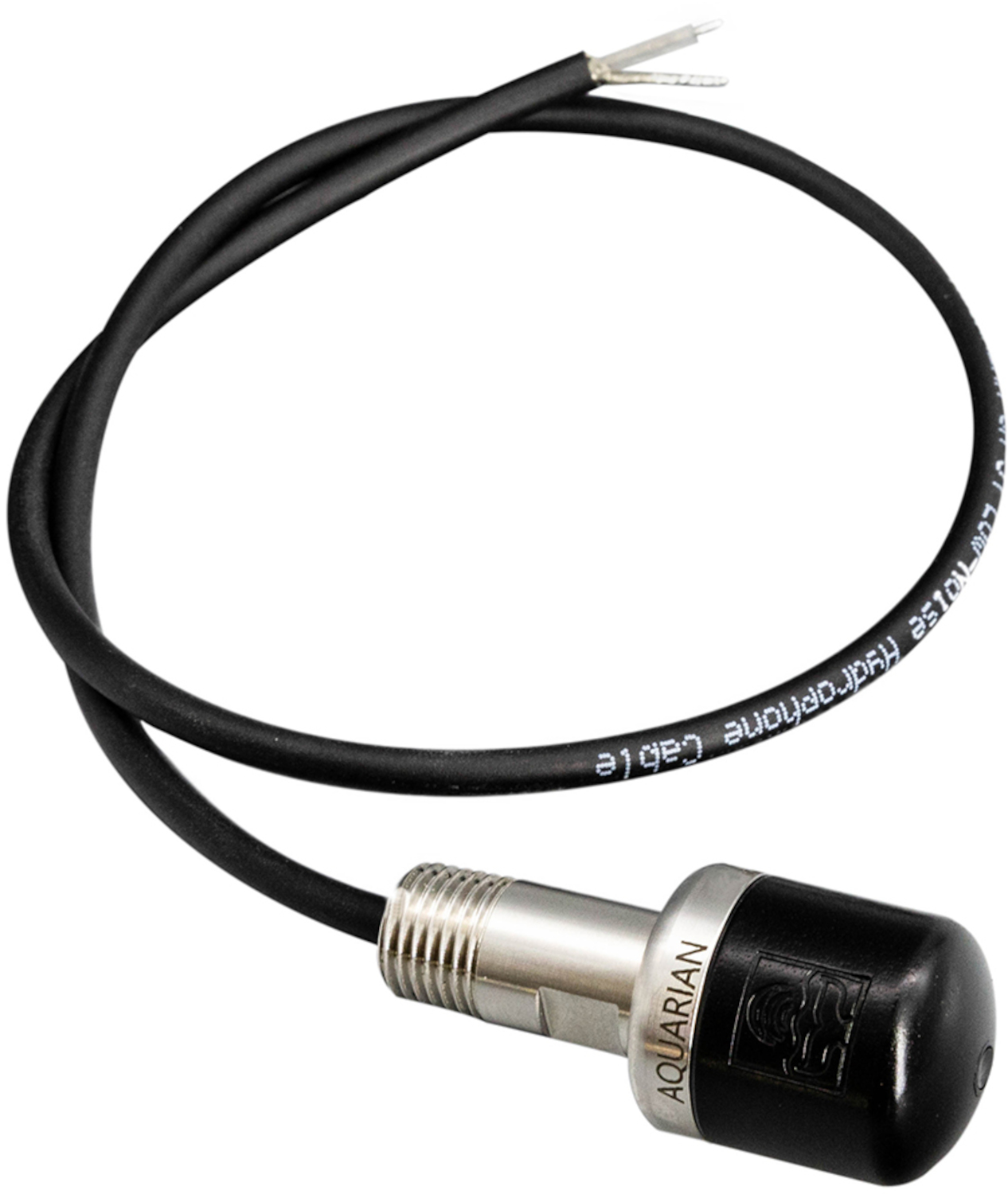

Thread-mount version of our popular H1a hydrophone. 1/4" NPT (National Pipe Thread) with 7/16" (12mm) wrench flats. Standard configuration includes 1/2-meter cable with stripped and tinned wire termination. Applications include industrial monitoring, and automomous or remote controlled vehicles and buoys.

For custom cable lengths or output connectors, add items as needed from our connectors page. Add one cable termination fee for each connector installed. Leave notes about your application so we can be sure to correctly install your cable and connector.

Important notes about connectors: We typically terminate the H1 hydrophones with either 1/4" TS or BNC connectors. Neither of these connectors will fit through the mounting hole when using the 1/4" NPT pipe mount. The 1/4" TS connector can be inserted through the mounting hole if using the panel-mount kit. Use small connectors as needed, install connectors after H1c is mounted, or connect cable directly to solder or terminal block. Connection should be shielded to avoid noise from EMI/RFI. If this hydrophone is purchased together with our PA4 hydrophone preamp, we will include a BNC-to-terminal-block adapter or supply the PA4 with 1/4" TS input on request. This offer is only good at the time of sale of hydrophone and amp; Connector installation on hydrophone and panel-mount kit sold separately.

  • Low cost
  • Low self noise
  • Good sensitivity
  • High durability
  • Very high dynamic range
  • Works directly with high-impedance microphone preamps, musical instrument amps, and test equipment
  • High-quality 3.5mm gold output connector

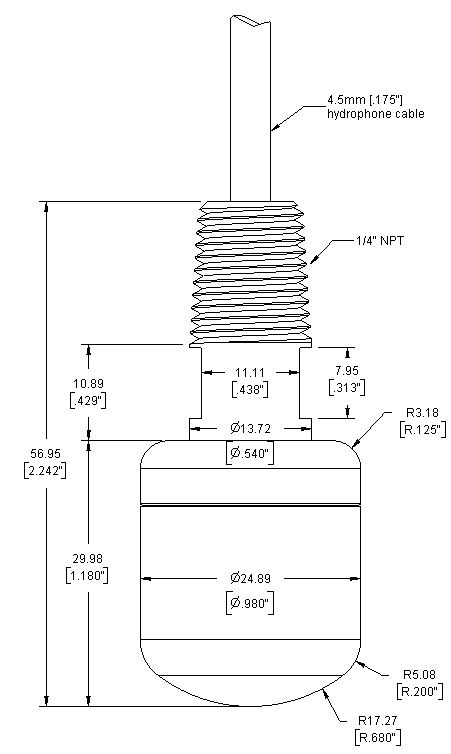

  • Compact size: 25 x 58mm (1" x 2-1/4")

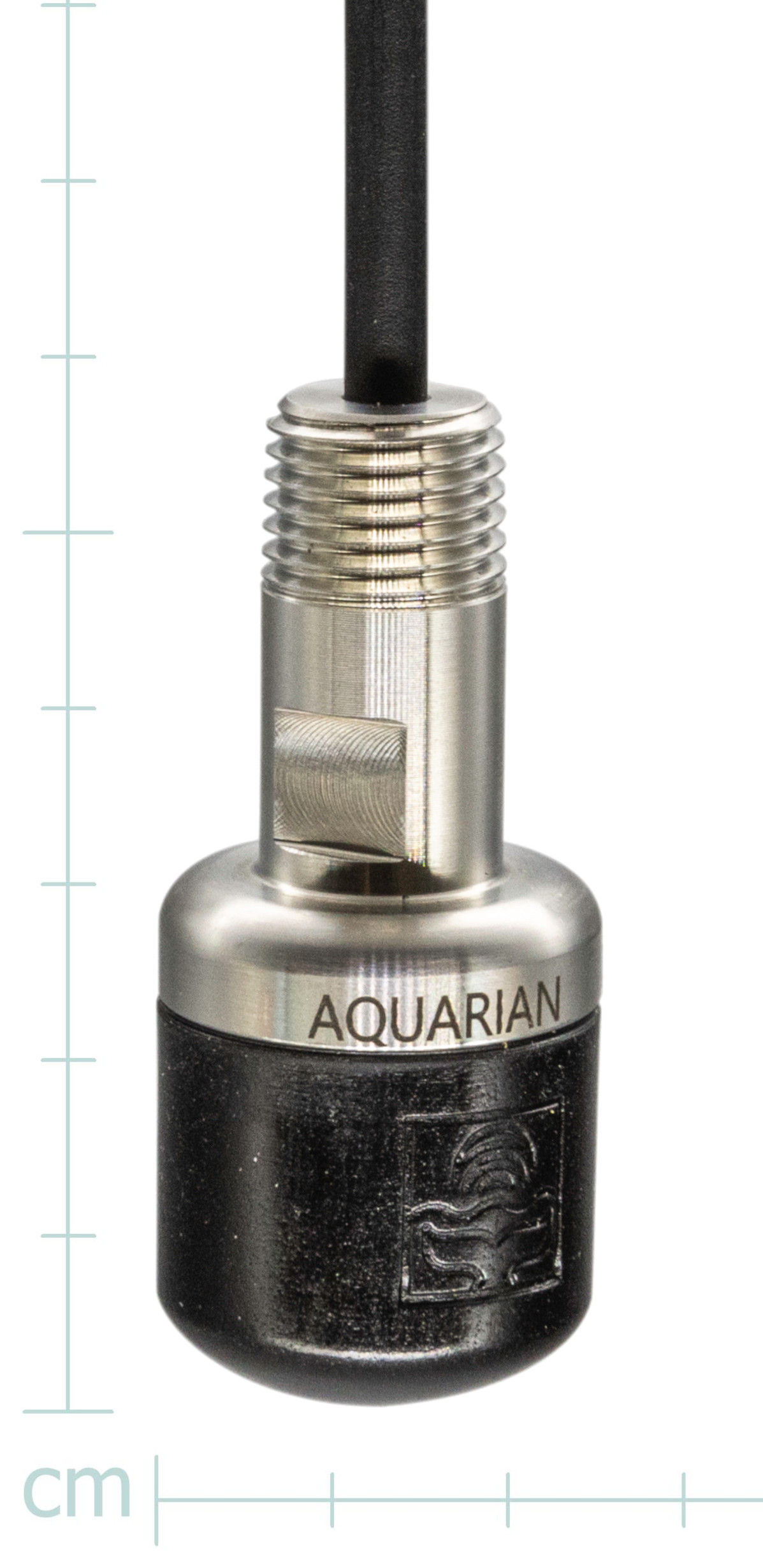

  • Convenient and secure stainless steel 1/4" pipe mount
  • 1-year limited warranty

Use with the PA1 buffer or PA4 preamp listed on our Amplifiers Page to make this device compatible with standard microphone circuits.

Optional panel-mount kit available for through-hole mounting to your enclosure.

User Manual--includes specifications and warranty statement
